SARVANI TELECOM

Innovative Network and Automation Solutions

Telecom Products

Description:
SAY 2424 - dbi 2.4 GHz Outdoor Grid Antenna Extends Range of Access Points.

* Price

 Call Us

Brand

SENAO

Model No.

SAY2424

Manufacturer

SENAO

Warranty

1 Yr.

Remark

CARRY IN

Delivery Period

ONE WEEK IF IN STOCK

Spec 1

24 dbi Outdoor two piece Parabolic antenna with complete mass kit.

Spec 2

Best use for PTP or PTMP solutions at longer distance.

Spec 3

Ideal shape for bridging or using the device as a client.

Spec 4

N(MU) Connector for professional use.

Spec 5

Polarization : Vertical 12 degrees / horizontal 12 degrees.

Spec 6

Units / Box : 5 pcs.

Spec 7

Gross Weight / Box :20.5 Kgs.

Spec 8

Suggested Pigtail : 1M (N) - (N)

For any query contact us

ST-24XR

2.4Ghz/5.8Ghz Wi-Fi Radios

Processor Specs

Atheros AR2316 SOC, MIPS 4KC, 180MHz

Memory Information

16MB SDRAM, 4MB Flash

Networking Interface

1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface

Radio operating frequency

2412-2462 MHz (Extended Range available)

Operating Channels

22

TX Power

26 dBm

TX channel width support

5MHZ / 10MHZ / 20MHZ /40MHZ

Data Rates

1Mbps/2Mbps/6Mbps/9Mbps/12Mbps/24Mbps/36Mbps/ 48Mbps/54Mbps

Rx Sensitivity

-97 dBm@1Mbps

Range Performance

Out door over 50Km(Antenna/LOS Dependent)

Modes

Station, StationWDS, AP,APWDS, Bridge, Router

Services

SNMP, DHCP, NAT

Distance Adjustment

ACK Timeout auto adjustment.

Power Adjustment

0-26dBm (1dB steps)

Utilities

Site Survey with preferred ESSID, Antenna Alignment tool, Discovery Utility

Tools

Speed test, Ping, Traceroot, Site Survey

Security

WEP/WPA/WPA2, TKIP, AES

QOS

802.11e / WMM Support

Atheros Specific Features

5/10/20 MHz Channels, Fast Frames, Compression, Super Frames

Super-G Features

Fast Frames, Bursting, Compression

Wireless Approvals

FCC Part 15.247, IC RS210, CE

RoHS Compliance

YES

Enclosure

IP67 Rating Die cast Aluminum

Dimensions

21 cm. length x 5.5 cm. Height x 15 cm. width

Weight

1.5Kg

Maximum power consumption

6.5Watts

Power Method

Passive Power over Ethernet (pairs 4,5+; 7,8 return)

DC Voltage Rating

12V

ESD/EMP Protection

Transient Voltage Suppression at POE port

Operating Temperature

-40C to 85C (System PCB optimized for hi-temp)

Antenna Port

N-Type Female

For any query contact us

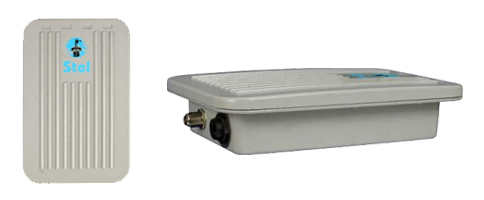

VERSATILE INDUSTRIAL GRADE 802.11a
ISM BAND RADIO MODEM
Stel ST-58PRO

Versatile ISM Band802.11a High Power Industrial Grade Radio Modem. A Radio Equipment That is Designed to bear the Harshest Conditions like high Temperatures, High Humidity, Heavy Rain Etc.

Proven Performance Over Many Years for Uninterrupted Service. Our Radio Modems can deliver multiple services like, E1 voice over IP, video streaming, Digital I/Os for Industrial Automation.

Processor Specs

Atheros AR7161 680 MHz CPU

Memory Information

128 MB DDRAM onboard memory

Data storage

64MB onboard NAND memory chip

Networking Interface

3x10/100 BASE-TX (Cat.5, RJ-45) Auto MDI/X Ethernet Interface

Radio operating Frequency

5725Mhz – 5850Mhz. (Extended Range 4.9Ghz.to 6.1Ghz.Available)

Wireless

Built-in Atheros AR9280 802.11a/n wireless device

Operating Channels

26

TX Power

28 dBm

TX channel width support

5MHZ/10MHZ/20MHZ/40MHZ

Data Rates

1Mbps/2Mbps/6Mbps/9Mbps/12Mbps/24Mbps/36Mbps/48Mbps/54Mbps/108Mbps

Rx Sensitivity

-97dBm @ 1Mbps

Modes

AP, AP client, Station, Repeater, WDS, DHCP Server, DHCP relay, EOIP Tunnel,
Hotspot,

Services

SNMP, DHCP, NAT

Distance Adjustment

ACK Timeout auto adjustment

Power Adjustment

0-28dBm (1dB steps)

Utilities

Site survey preferred ESSID, Antenna alignment tool, discovery utility

Tools

Speed test, Ping, Trace root, Site survey

Security

WEP, WPA, WPA2, TKIP, AES

QOS

802.11e/ WMM Support

Atheros Specific Features

5/10/20MHz Channels, Fast frames, Compression, Super Frames

Super-G Features

Frames, Bursting, Compression

Wireless Approvals

FCC Part15.247, IC RS210, CE

RoHS Compliance

YES

Enclosure

IP67 Rating Die cast Aluminum enclosure

Dimensions

28 cm Length x 18 cm Width x 6.5 cm Height

Weight

1.8Kg

Max power consumption

25watts

Power Method

Passive Power over Ethernet (pairs 4,5+; 7,8 return)

DC Voltage Rating

24V

ESD/EMP Protection

Transient Voltage suppression at POE port , 16kV protection on RF port

Operating Temperature

-20C to 65C (system PCB optimized for hi-temp)

Antenna Port

N-type Female


For any query contact us
